Corner Profile

Aluminium Corner Profile

5011AC

385 x 385

Options

PEX5011ACCustom amount of high quality paint needed to treat exterior1
PIN5011ACCustom amount of transparent high quality paint needed to treat interior1
V5011Floor1
V5011IMGPressure treated floor1
GM405Rain gutter flat roof1
3198ACWood shed 140x170 cm1
3199ACWood shed 140x260 cm1
3197ACSide shed 150x265 cm1

PEX5011AC

PIN5011AC

V5011

V5011IMG

GM405

3198AC

3199AC

3197AC

Dimensions

385
385
14,82
379,4
379,4
14,39
412
412
16,97
235
215

Properties

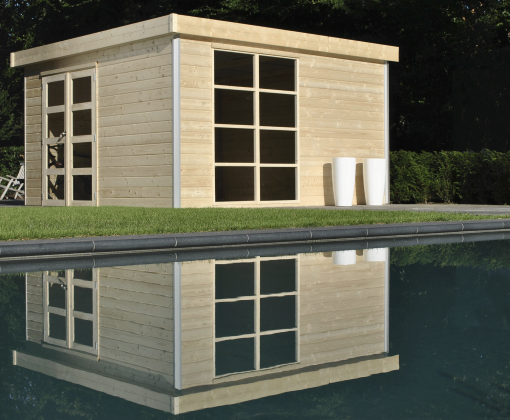

Type of construction: garden shed with windproof aluminum corner joint
Walls: construction in 28 mm thick spruce from the high North

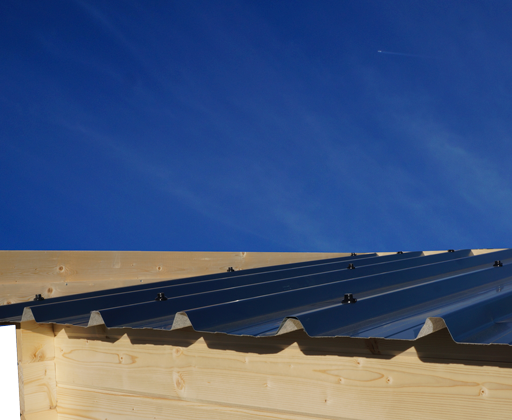

Roof cover: steel roof with anti-fog cloth

Dimension on ground baseproduct: 385 x 385 cm
Surface on ground baseproduct: 14,82 m²
Dimension inner baseproduct: 379,4 x 379,4 cm
Surface inner baseproduct: 14,39 m²
Dimension overall baseproduct: 412 x 412 cm
Surface overall baseproduct: 16,97 m²
Minimal recommended size of concrete base: 385 x 385 cm

Height of sidewall: 215 cm
Height of ridge: 235 cm
Roof slope: 1 °
m² to be treated: 95 m²
Packing WxDxH: 420 x 110 x 60 cm

Doortype 1: DDM04G
Description door 1: double door Modern surface mounted with real glass
Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
Window type 1: A/VRM8G
Description window 1: Modern window 8 parts 28mm
Glazing window 1: transparent glass 4 mm
Daylight size window 1: 142 x 184 cm

Downloads


Partlist
Mounting instructions
Mounting instructions floor
Mounting instructions wood shed
Mounting instructions side shed
Mounting instructions gutter
