Qube

Dimensions

Properties

Type of construction: garden shed with windproof timber corner joint and elegant sliding door
Treatment of timber: Pressure-impregnated class 3: protection against rot, mould and insects. With additional wax additive for temporary and limited water-repellency.
Walls: 28 mm thick pressure impregnated spruce
Roof: OSB3
Roof cover: EPDM
Rainwater evacuation: included (down to the ground)

Dimension on ground baseproduct: 300 x 210 cm
Surface on ground baseproduct: 6,3 m²
Dimension inner baseproduct: 294 x 204 cm
Surface inner baseproduct: 6 m²
Dimension overall baseproduct: 300 x 210 cm
Surface overall baseproduct: 6,3 m²
Minimal recommended size of concrete base: 300 x 210 cm

Height of sidewall: 217 cm
Height of ridge: 216 cm
Roof slope: 1 °
m² to be treated: 55 m²
Weight: 490 kg
Packing WxDxH: 300 x 120 x 70 cm

Doortype 1: EDQBS1

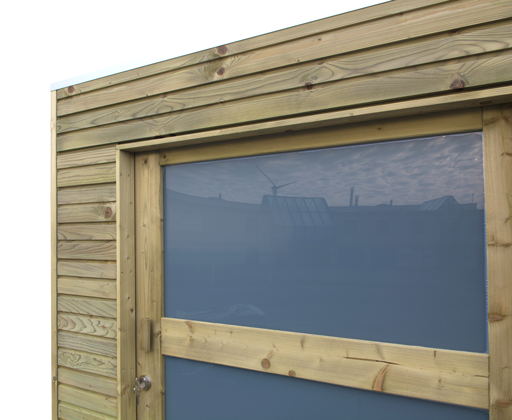

Description door 1: single sliding door QBS

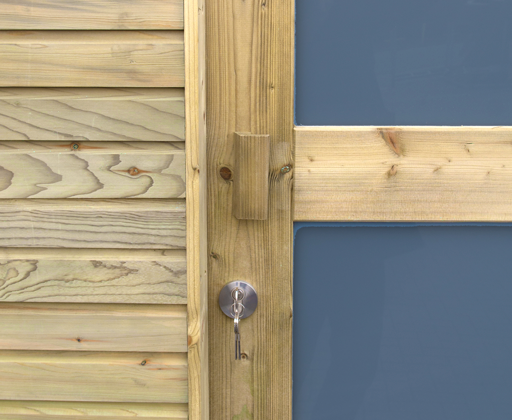

Lock door 1: stainless steel cylinder and aluminium handle
Dimensions door 1 W x H: 114 x 192 cm
Daylight size door 1 W x H: 108 x 188 cm
Window type 1: HRQB3
Description window 1: window QB for 3 m depth
Glazing window 1: matt plexiglass
Daylight size window 1: 125 x 27 cm
