Logcabin

Heritage

3504EXT

355 x 650

Choices

OPSH1Shingles green13
OPSH2Shingles brown13
OPSH3Shingles black13
OPSH4Shingles red13
OPSH5Shingles duotone terra red13
OPSH6Shingles duotone slate13
OPSH7Shingles duotone autumn brown13
OPSH8Shingles duotone cedar13

OPSH1

OPSH2

OPSH3

OPSH4

OPSH5

OPSH6

OPSH7

OPSH8

Options

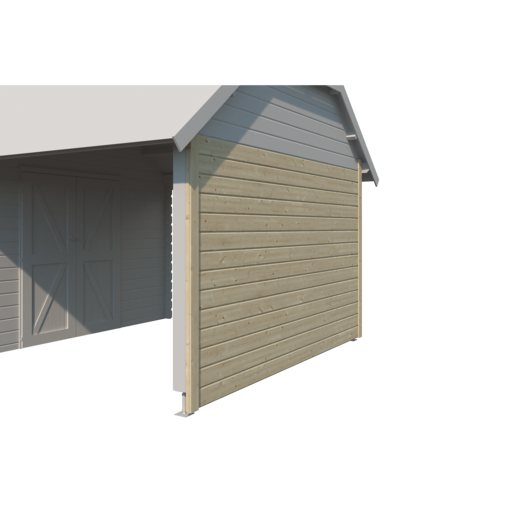

3504EXTVWFacade extension1

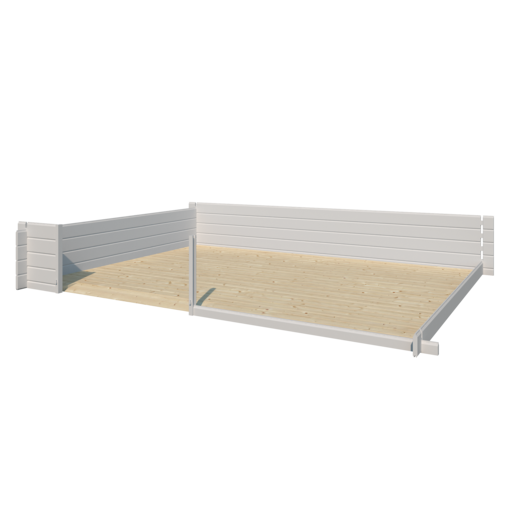

V3504Floor1

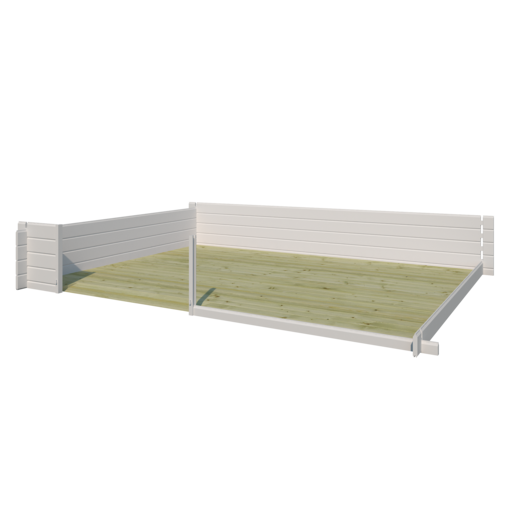

V3504IMGPressure treated floor1

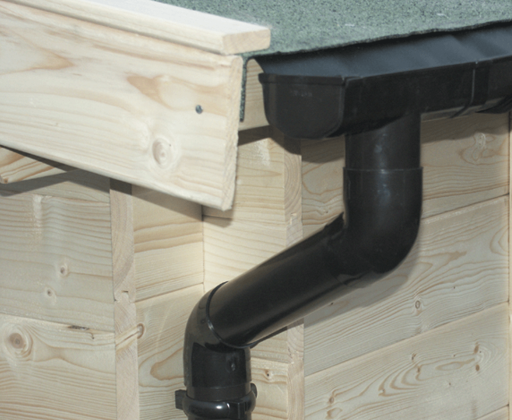

G700Rain gutter classic1

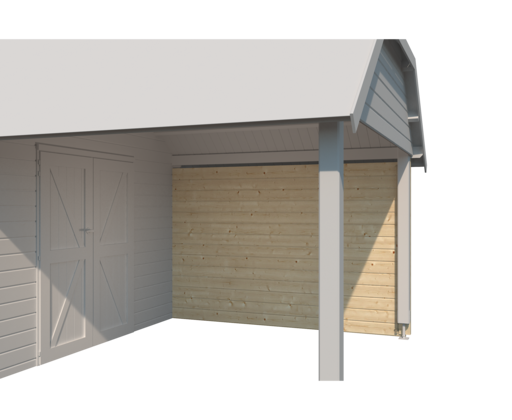

3504EXTZWSidewall extension1

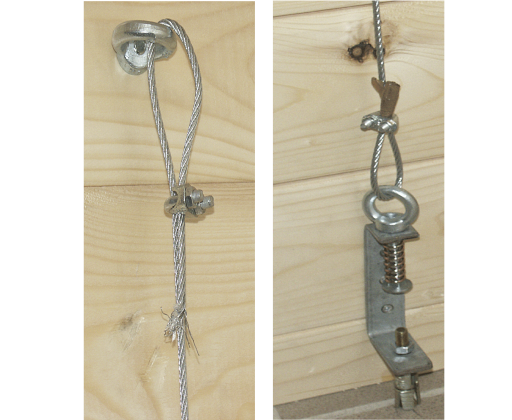

3200Storm protection system1

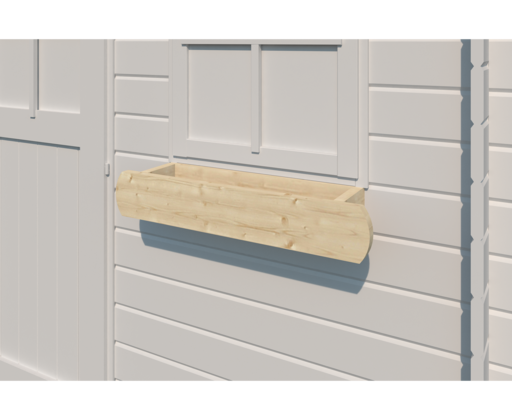

3100Flower boxes (2)1

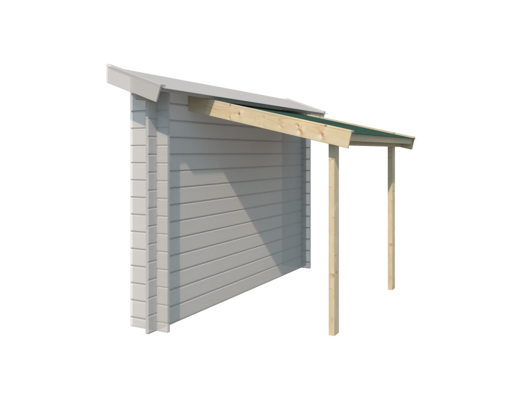

3198RWood shed 140x170 cm1

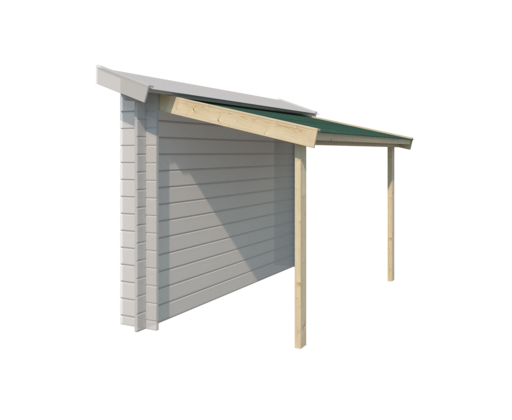

3199RWood shed 140x260 cm1

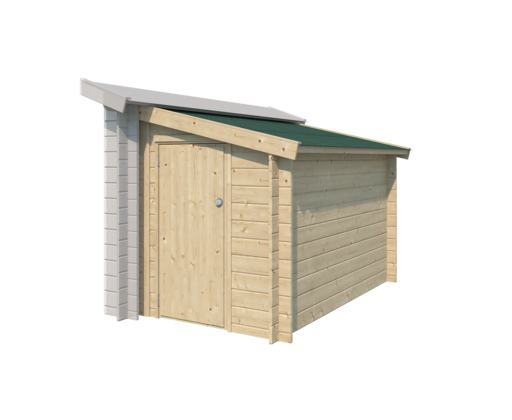

3197RSide shed 150x265 cm1

3504EXTVW

V3504

V3504IMG

G700

3504EXTZW

3200

3100

3198R

3199R

3197R

Dimensions

355
355
12,6
329,4
329,4
10,85
358
375
13,43
355
292,2
10,37
329,4
292,2
9,63
375
295
11,06
341
202

Properties

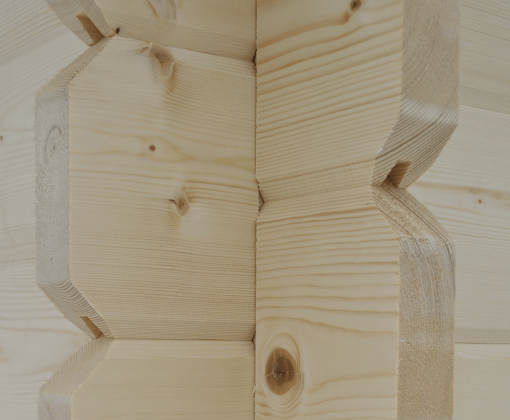

Ends of the boards: diamond
Walls: traditional log cabin style construction in 28 mm thick spruce from the high North
Roof: 15 mm thick spruce from the high North
Roof cover: shingles with optional choice of colour

Dimension on ground baseproduct: 355 x 355 cm
Surface on ground baseproduct: 12,6 m²
Dimension on ground extension: 355 x 292,2 cm
Surface on ground extension: 10,37 m²
Dimension inner baseproduct: 329,4 x 329,4 cm
Surface inner baseproduct: 10,85 m²
Dimension inner extension: 329,4 x 292,2 cm
Surface inner extension: 9,63 m²
Dimension overall baseproduct: 375 x 358 cm
Surface overall baseproduct: 13,43 m²
Dimension overall extension: 375 x 295 cm
Surface overall extension: 11,06 m²
Minimal recommended size of concrete base: 355 x 647,2 cm

Height of sidewall: 202 cm
Height of ridge: 341 cm
Roof slope: 40 °
m² to be treated: 125 m²
Packing WxDxH: 360 x 110 x 60 + 300 x 110 x 40 cm + 100 x 40 x 55 cm

Doortype 1: DDC03
Description door 1: surface mounted double door Heritage

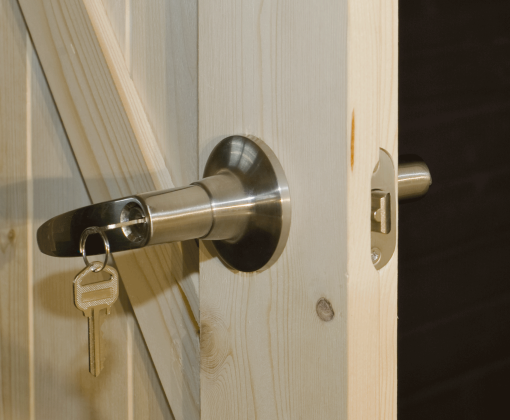

Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
Window type 1: EVR03
Description window 1: single closed window Heritage
Glazing window 1: transparent plexiglass
Daylight size window 1: 73 x 60 cm
