Logcabin

Dimensions

Properties

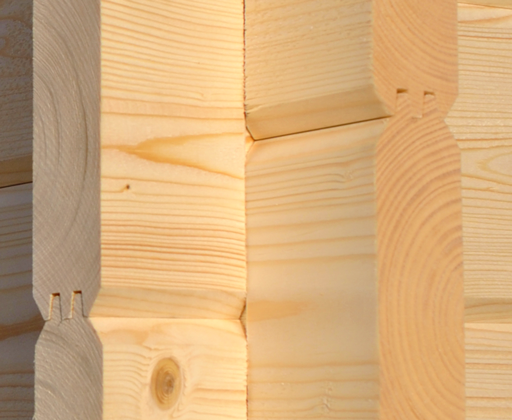

Type of construction: log cabin with windproof 3D connection
Ends of the boards: straigth
Walls: traditional log cabin style construction in 44 mm thick spruce from the high North
Roof cover: lacquered steel sheets + insulation (30mm)

Dimension on ground baseproduct: 505 x 385 m²
Surface on ground baseproduct: 19,44 m²
Dimension on ground extension: 400 x 385 m²
Surface on ground extension: 15,4 m²
Dimension inner baseproduct: 482,2 x 362,2 m²
Surface inner baseproduct: 17,47 m²
Dimension inner extension: 396 x 362 m²
Surface inner extension: 14,34 m²
Dimension overall baseproduct: 512 x 412 m²
Surface overall baseproduct: 21,09 m²
Dimension overall extension: 400 x 412 m²
Surface overall extension: 16,68 m²
Overhang roof front: 12 cm
Minimal recommended size of concrete base: 905 x 385 cm

Height of sidewall: 222 / 214 / cm
Height of ridge: 235 cm
Roof slope: 2,5 °
m² to be treated: 170 m²
Weight: 1475 kg
Packing WxDxH: 510 x 110 x 80 + 400 x 110 x 35 cm

Doortype 1: DDM04M
Description door 1: double door Modern surface mounted mat
Glazing door 1: matt plexiglass

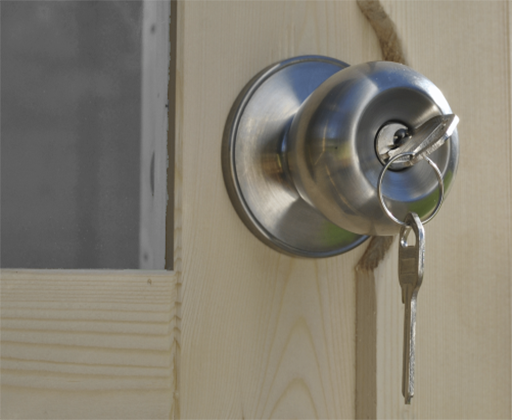

Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
Window type 1: X/VRM2
Description window 1: Modern window 2 parts 44mm
Glazing window 1: matt plexiglass
Daylight size window 1: 170 x 34,5 cm

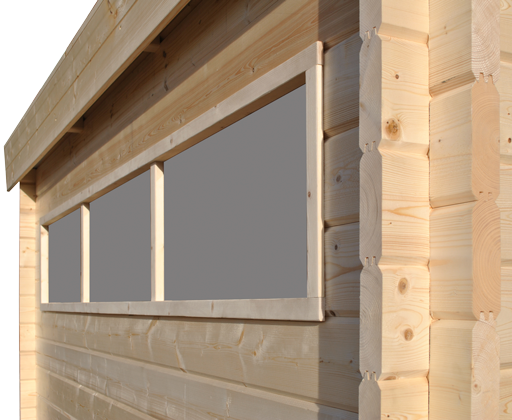

Window type 2: X/VRM3
Description window 2: Modern window 3 parts 44mm
Glazing window 2: matt plexiglass
Daylight size window 2: 228 x 34,5 cm
