Qube

Dimensions

Properties

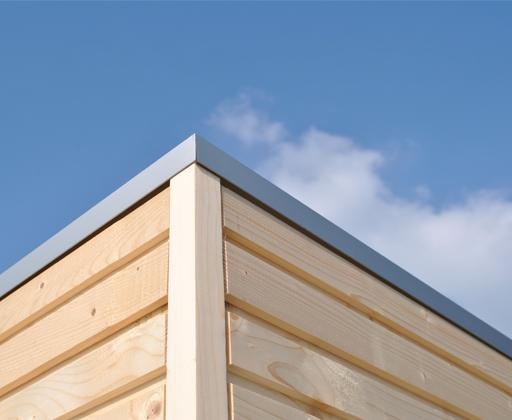

Type of construction: garden shed with windproof timber corner joint

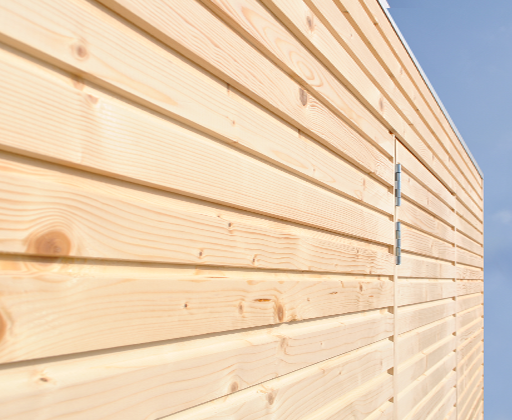

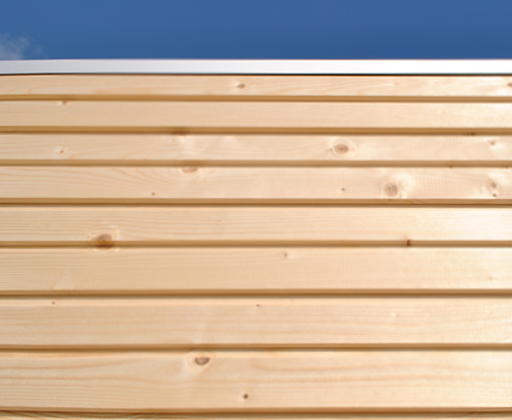

Walls: 28 mm thick pressure impregnated spruce
Roof: OSB3
Roof cover: EPDM
Rainwater evacuation: included (down to the ground)

Dimension on ground baseproduct: 210 x 210 cm
Surface on ground baseproduct: 4,41 m²
Dimension on ground extension: 294 x 210 cm
Surface on ground extension: 6,17 m²
Dimension inner baseproduct: 204 x 204 cm
Surface inner baseproduct: 4,16 m²
Dimension inner extension: 281,7 x 185cm
Surface inner extension: 5,21 m²
Dimension overall baseproduct: 210 x 210 cm
Surface overall baseproduct: 4,41 m²
Dimension overall extension: 294 x 210 cm
Surface overall extension: 6,23 m²
Minimal recommended size of concrete base: 510 x 210 cm

Height of sidewall: 215 cm
Height of ridge: 216 cm
Roof slope: 1 °
m² to be treated: 70 m²
Weight: 500 kg
Packing WxDxH: 220 x 120 x 70 + 300 x 105 x 50 cm

Doortype 1: EDQB1
Description door 1: single door QB
Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 89 x 189 cm
Daylight size door 1 W x H: 86 x 188 cm
Window type 1: LRQB2
Description window 1: window QB for 2 m depth
Glazing window 1: transparent plexiglass
Daylight size window 1: 125 x 27 cm
