Qube

Dimensions

Properties

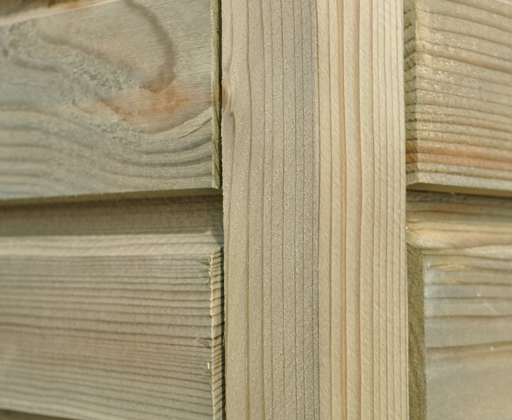

Type of construction: garden shed with windproof timber corner joint

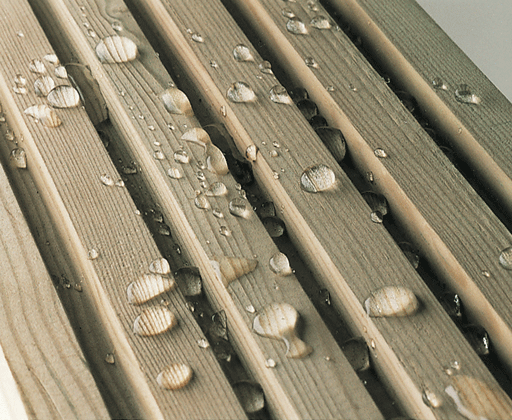

Treatment of timber: Pressure-impregnated class 3: protection against rot, mould and insects. With additional wax additive for temporary and limited water-repellency.
Walls: 28 mm thick pressure impregnated spruce
Roof: OSB3

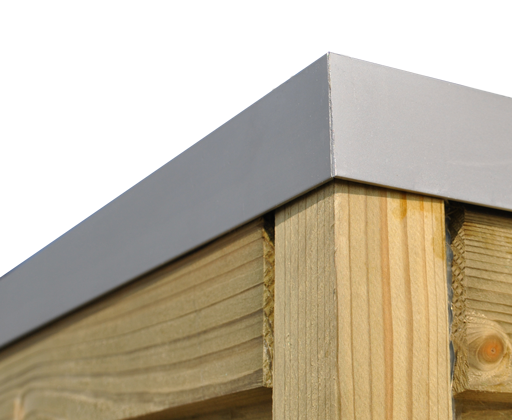

Roof cover: EPDM
Rainwater evacuation: included (down to the ground)

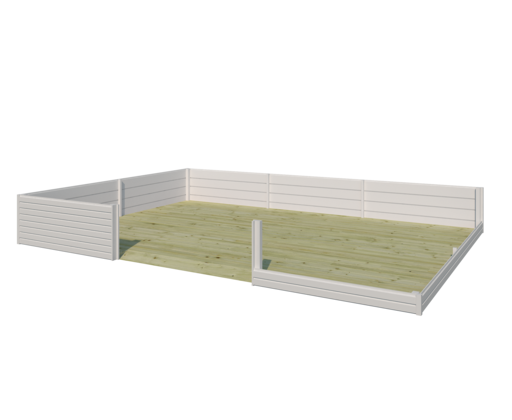

Dimension on ground baseproduct: 300 x 300 cm
Surface on ground baseproduct: 9 m²
Dimension inner baseproduct: 294 x 294 cm
Surface inner baseproduct: 8,64 m²
Dimension overall baseproduct: 300 x 300 cm
Surface overall baseproduct: 9 m²
Minimal recommended size of concrete base: 300 x 300 cm

Height of sidewall: 215 cm
Height of ridge: 216 cm
Roof slope: 1 °
m² to be treated: 65 m²
Weight: 580 kg
Packing WxDxH: 300 x 120 x 70 cm

Doortype 1: EDQB1
Description door 1: single door QB

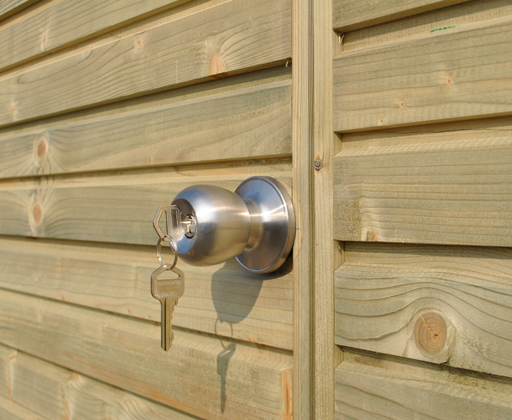

Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 89 x 189 cm
Daylight size door 1 W x H: 86 x 188 cm
Window type 1: HRQB3
Description window 1: window QB for 3 m depth
Glazing window 1: transparent plexiglass
Daylight size window 1: 190 x 27 cm
